Fluent Support Database Schema

Fluent Support use custom database tables with options tables to store all the data. Here are the list of database tables, and it's schema to understand overall database design and related data attributes of each model.

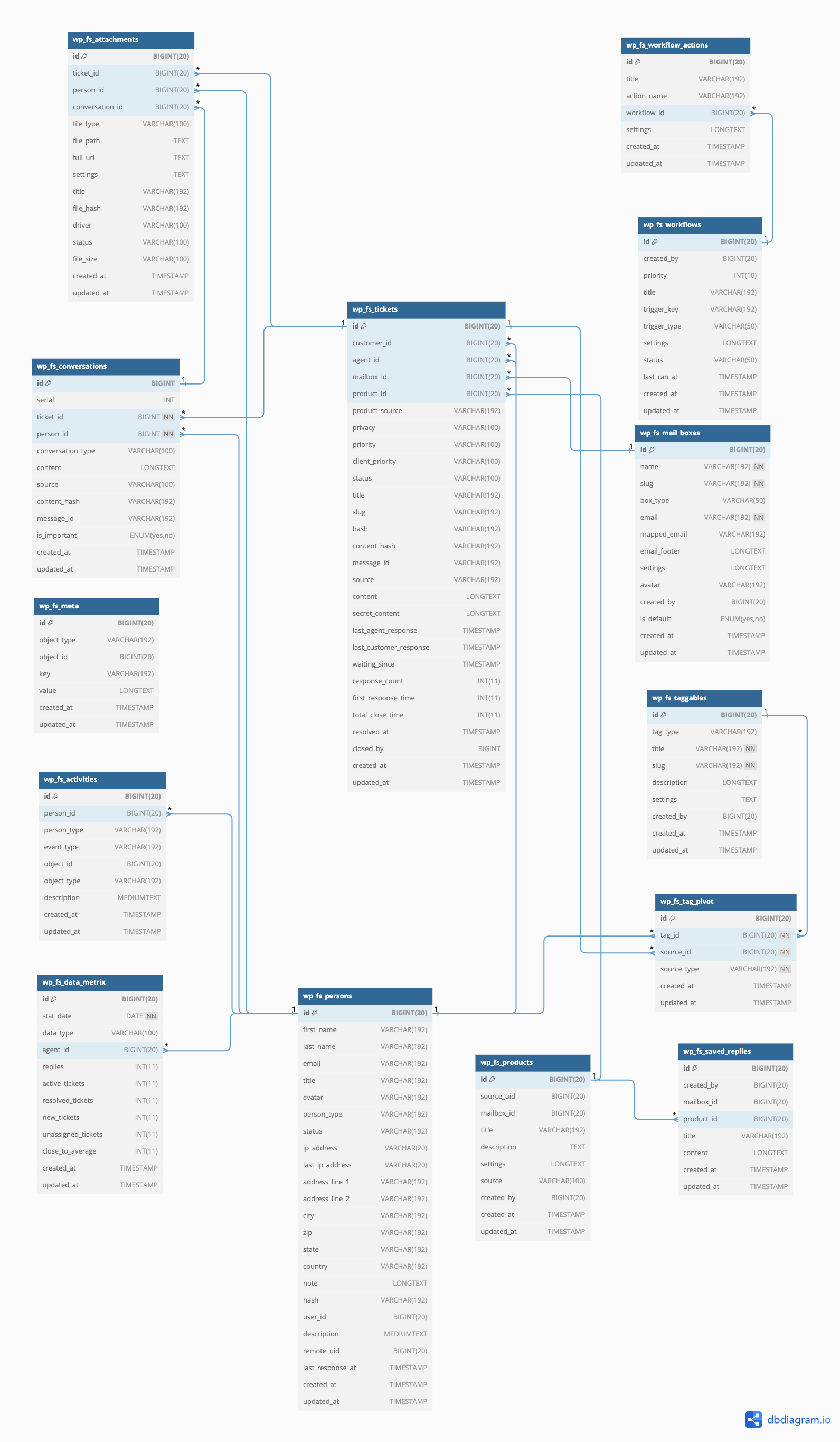

Schema Design

Database Tables

fs_tickets

This table stores the ticket data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
customer_id	bigint(20) UNSIGNED NULL
agent_id	bigint(20) UNSIGNED NULL
mailbox_id	bigint(20) UNSIGNED NULL
product_id	bigint(20) UNSIGNED NULL
product_source	varchar(192) NULL
privacy	varchar(100) [private]
priority	varchar(100) [normal]
client_priority	varchar(100) [normal]
status	varchar(100) [new]
title	varchar(192) NULL
slug	varchar(192) NULL
hash	varchar(192) NULL
content_hash	varchar(192) NULL
message_id	varchar(192) NULL
source	varchar(192) NULL
content	longtext NULL
secret_content	longtext NULL
last_agent_response	timestamp NULL
last_customer_response	timestamp NULL
waiting_since	timestamp NULL
response_count	int(11) [0]
first_response_time	int(11) NULL
total_close_time	int(11) NULL
resolved_at	timestamp NULL
closed_by	bigint(20) UNSIGNED NULL
created_at	timestamp NULL
updated_at	timestamp NULL

fs_tag_pivot

This table stores the tag relations

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
tag_id	bigint(20) UNSIGNED
source_id	bigint(20) UNSIGNED
source_type	varchar(192)
created_at	timestamp NULL
updated_at	timestamp NULL

fs_taggables

This table stores the tag data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
tag_type	varchar(192) NULL
title	varchar(192)
slug	varchar(192)
description	longtext NULL
settings	text NULL
created_by	bigint(20) UNSIGNED NULL
created_at	timestamp NULL
updated_at	timestamp NULL

fs_products

This table stores the product data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
source_uid	bigint(20) UNSIGNED NULL
mailbox_id	bigint(20) UNSIGNED NULL
title	varchar(192) NULL
description	text NULL
settings	longtext NULL
source	varchar(100) [local]
created_by	bigint(20) UNSIGNED NULL
created_at	timestamp NULL
updated_at	timestamp NULL

fs_persons

This table stores the persons data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
first_name	varchar(192) NULL
last_name	varchar(192) NULL
email	varchar(192) NULL
title	varchar(192) NULL
avatar	varchar(192) NULL
person_type	varchar(192) [customer]
status	varchar(192) [active]
ip_address	varchar(20) NULL
last_ip_address	varchar(20) NULL
address_line_1	varchar(192) NULL
address_line_2	varchar(192) NULL
city	varchar(192) NULL
zip	varchar(192) NULL
state	varchar(192) NULL
country	varchar(192) NULL
note	longtext NULL
hash	varchar(192) NULL
user_id	bigint(20) UNSIGNED NULL
description	mediumtext NULL
remote_uid	bigint(20) UNSIGNED NULL
last_response_at	timestamp NULL
created_at	timestamp NULL
updated_at	timestamp NULL

fs_meta

This table stores the meta data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
object_type	varchar(192) NULL
object_id	bigint(20) NULL
key	varchar(192) NULL
value	longtext NULL
created_at	timestamp NULL
updated_at	timestamp NULL

fs_mail_boxes

This table stores the mailbox data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
name	varchar(192)
slug	varchar(192)
box_type	varchar(50) [web]
email	varchar(192)
mapped_email	varchar(192) NULL
email_footer	longtext NULL
settings	longtext NULL
avatar	varchar(192) NULL
created_by	bigint(20) UNSIGNED NULL
is_default	ENUM('yes', 'no') [no]
created_at	timestamp NULL
updated_at	timestamp NULL

fs_data_metrix

This table stores the data metrix

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
stat_date	DATE
data_type	varchar(100) [agent_stat]
agent_id	bigint(20) UNSIGNED NULL
replies	int(11) UNSIGNED NULL [0]
active_tickets	int(11) UNSIGNED NULL [0]
resolved_tickets	int(11) UNSIGNED NULL [0]
new_tickets	int(11) UNSIGNED NULL [0]
unassigned_tickets	int(11) UNSIGNED NULL [0]
close_to_average	int(11) UNSIGNED NULL [0]
created_at	timestamp NULL
updated_at	timestamp NULL

fs_conversations

This table stores the conversation data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
serial	int(11) UNSIGNED [1]
ticket_id	bigint(20) UNSIGNED
person_id	bigint(20) UNSIGNED
conversation_type	varchar(100) [response]
content	longtext NULL
source	varchar(100) [web]
content_hash	varchar(192) NULL
message_id	varchar(192) NULL
is_important	ENUM('yes', 'no') [no]
created_at	timestamp NULL
updated_at	timestamp NULL

fs_attachments

This table stores the attachment data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
ticket_id	bigint(20) UNSIGNED NULL
person_id	bigint(20) UNSIGNED NULL
conversation_id	bigint(20) UNSIGNED NULL
file_type	varchar(100) NULL
file_path	text NULL
full_url	text NULL
settings	text NULL
title	varchar(192) NULL
file_hash	varchar(192) NULL
driver	varchar(100) [local]
status	varchar(100) NULL [active]
file_size	varchar(100) NULL
created_at	timestamp NULL
updated_at	timestamp NULL

fs_notifications

This table stores internal notification records created by the Internal Notifications module (added in 2.2.0).

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
actor_id	bigint(20) UNSIGNED NULL	ID of the person who triggered the event (from fs_persons). NULL for system-generated notifications.
ticket_id	bigint(20) UNSIGNED NULL	The related ticket ID
conversation_id	bigint(20) UNSIGNED NULL	The related conversation/response ID, if applicable
event_type	varchar(192) NOT NULL	Notification event type slug (e.g. ticket_assigned, customer_replied)
category	varchar(100) NOT NULL	Notification category: mentions, ticket_activity, or automation_triggers
payload	longtext NULL	JSON-encoded contextual data for rendering the notification message
created_at	timestamp NULL
updated_at	timestamp NULL

fs_notification_users

This table tracks per-recipient read state for each internal notification (added in 2.2.0).

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
notification_id	bigint(20) UNSIGNED NOT NULL	Foreign key to fs_notifications.id
user_id	bigint(20) UNSIGNED NOT NULL	Recipient agent person ID (from fs_persons)
channel	varchar(100) [web]	Delivery channel. Currently only web is used.
is_read	tinyint(1) [0]	Whether the recipient has read this notification
read_at	timestamp NULL	When the notification was marked as read
created_at	timestamp NULL
updated_at	timestamp NULL

fs_activities

This table stores the activities data

Column	Type	Comment
id	bigint(20) UNSIGNED Auto Increment
person_id	bigint(20) NULL
person_type	varchar(192) NULL
event_type	varchar(192) NULL
object_id	bigint(20) NULL
object_type	varchar(192) NULL
description	mediumtext NULL
created_at	timestamp NULL
updated_at	timestamp NULL
